Industrial X-ray

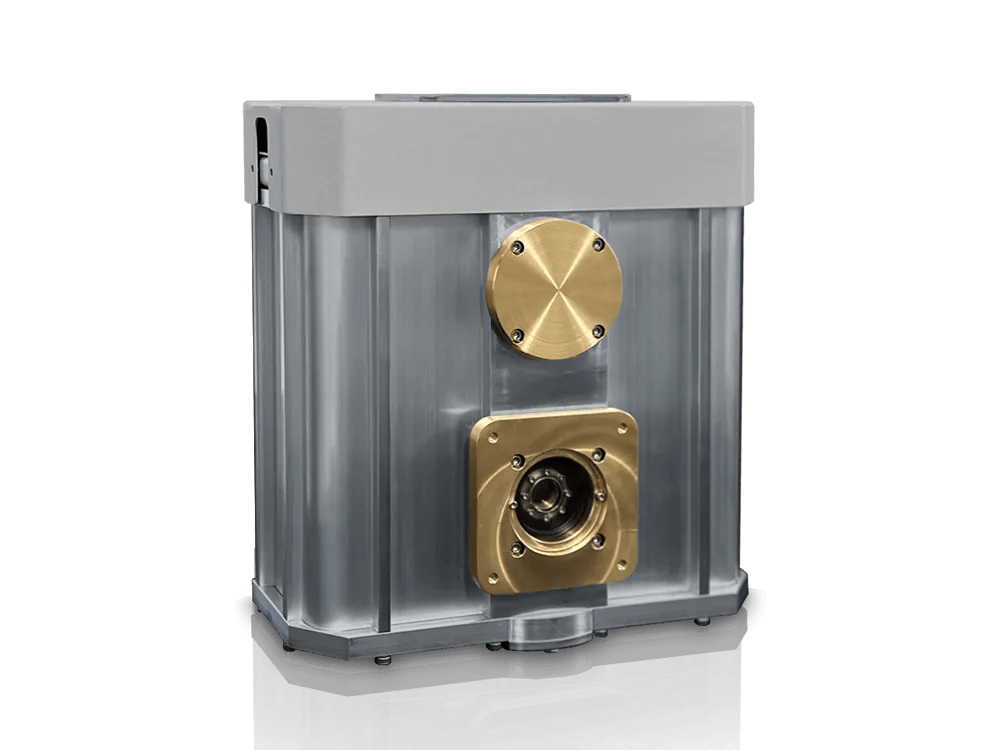

HIGH VOLTAGE TANK | RIX-B100
Smaller, light-weight, low dose, High-precision X-ray source Systems for the most demanding inspection applications.
RIX-B100
Industrial X-ray, Battery
Specification
INNOVATIVE PRODUCT
RIX-B100
Input Power
220V
Power Consumption
1.5kW @220 VAC
Output Power
50W
Voltage Range
30 ~ 50kV — Variable (1 kV unit) ±3%
Current Range
0.5 ~ 1mA — Variable (0.1 mA unit) Tolerance ±3%
Focal Spot Size
0.1mm
Anode Angle
12degrees
Tact Time
< 4sec — 0.2s of continuous irradiation
Exposure Time
0.5sec
Size (L x W x H)
227 x 103 x 242mm
Weight
5.5kg
