Lightweight X-ray Camera Medical
MAIN PRODUCT | CAMERA TYPE
With this device we are able to bring incredible technology directly to the point-of-care-testing.

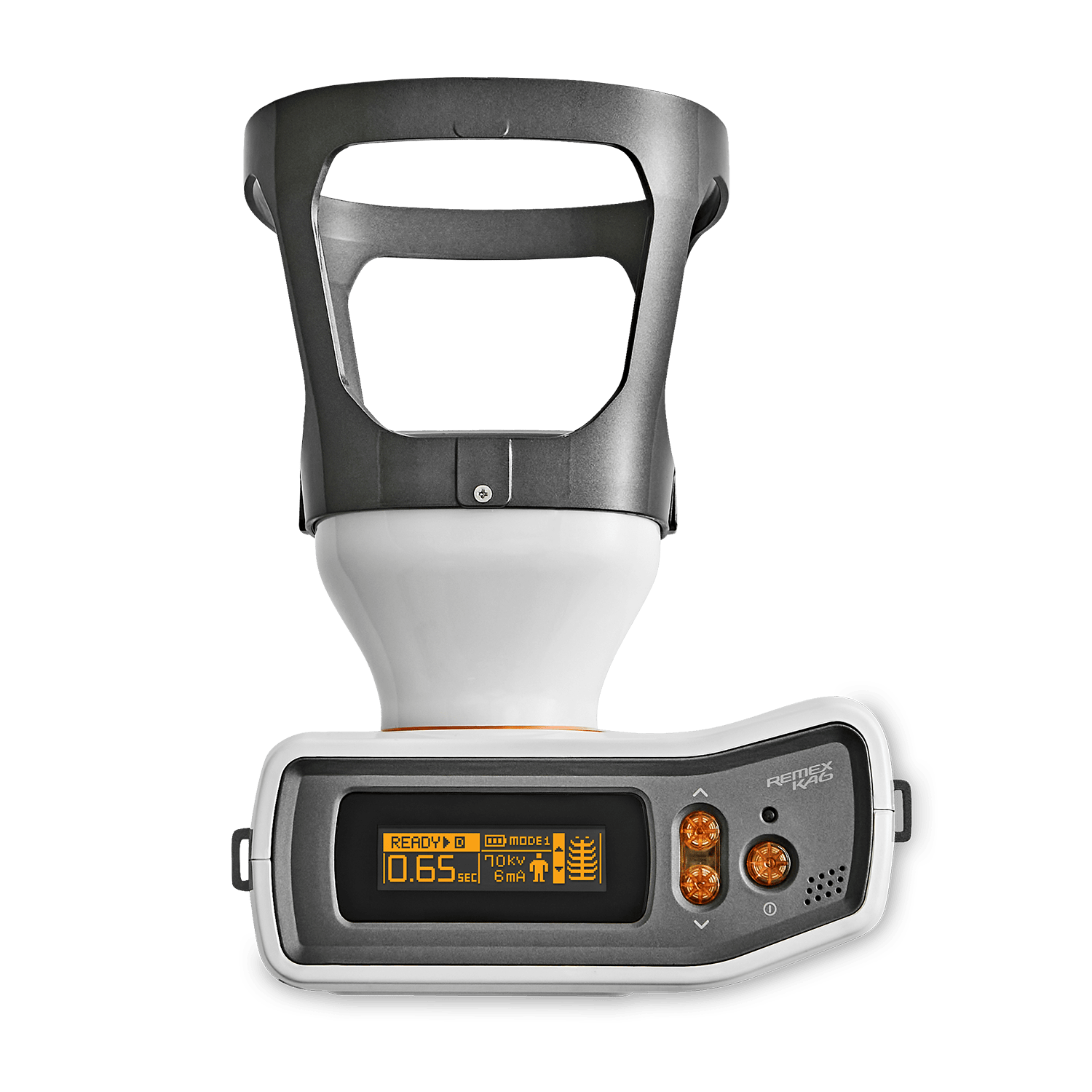

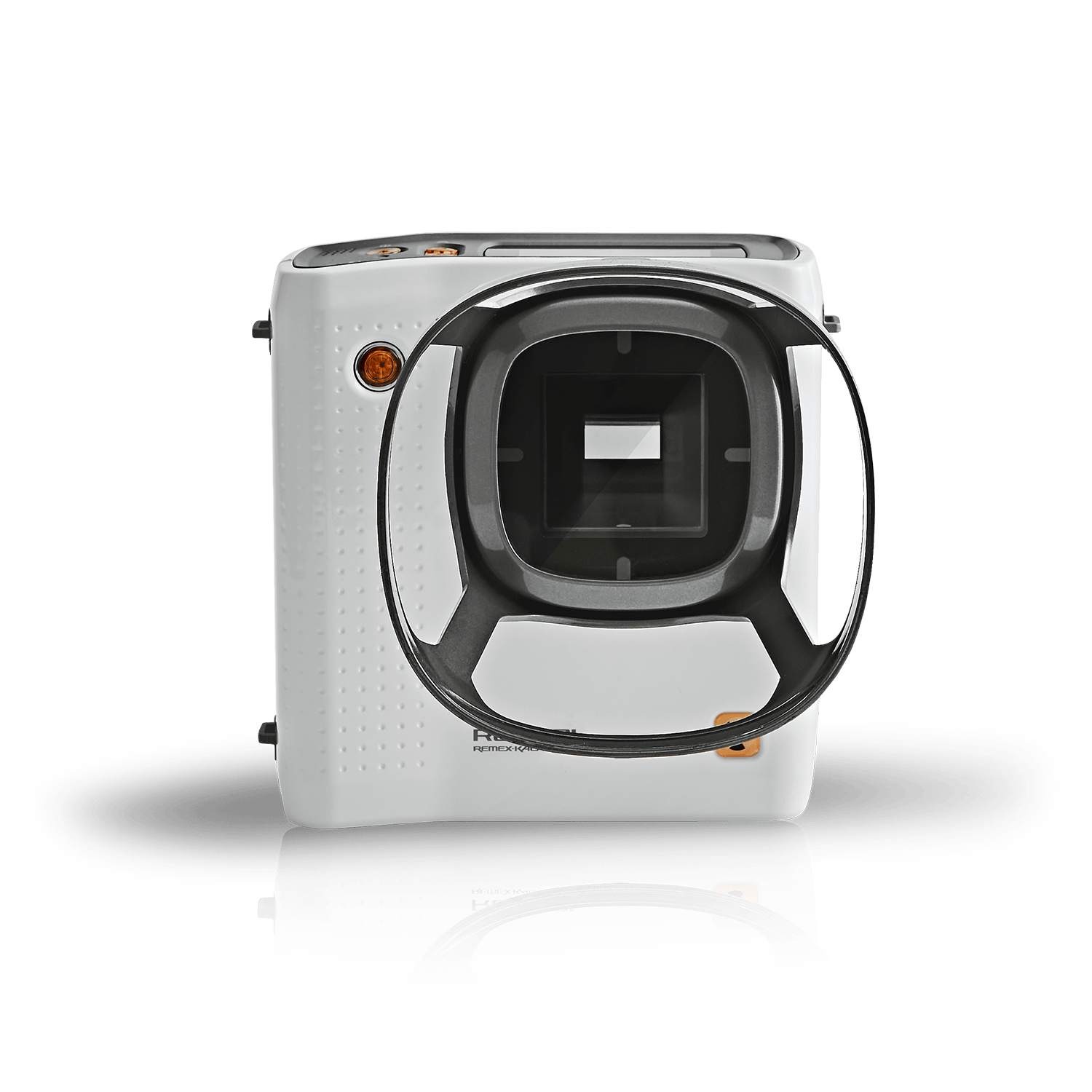

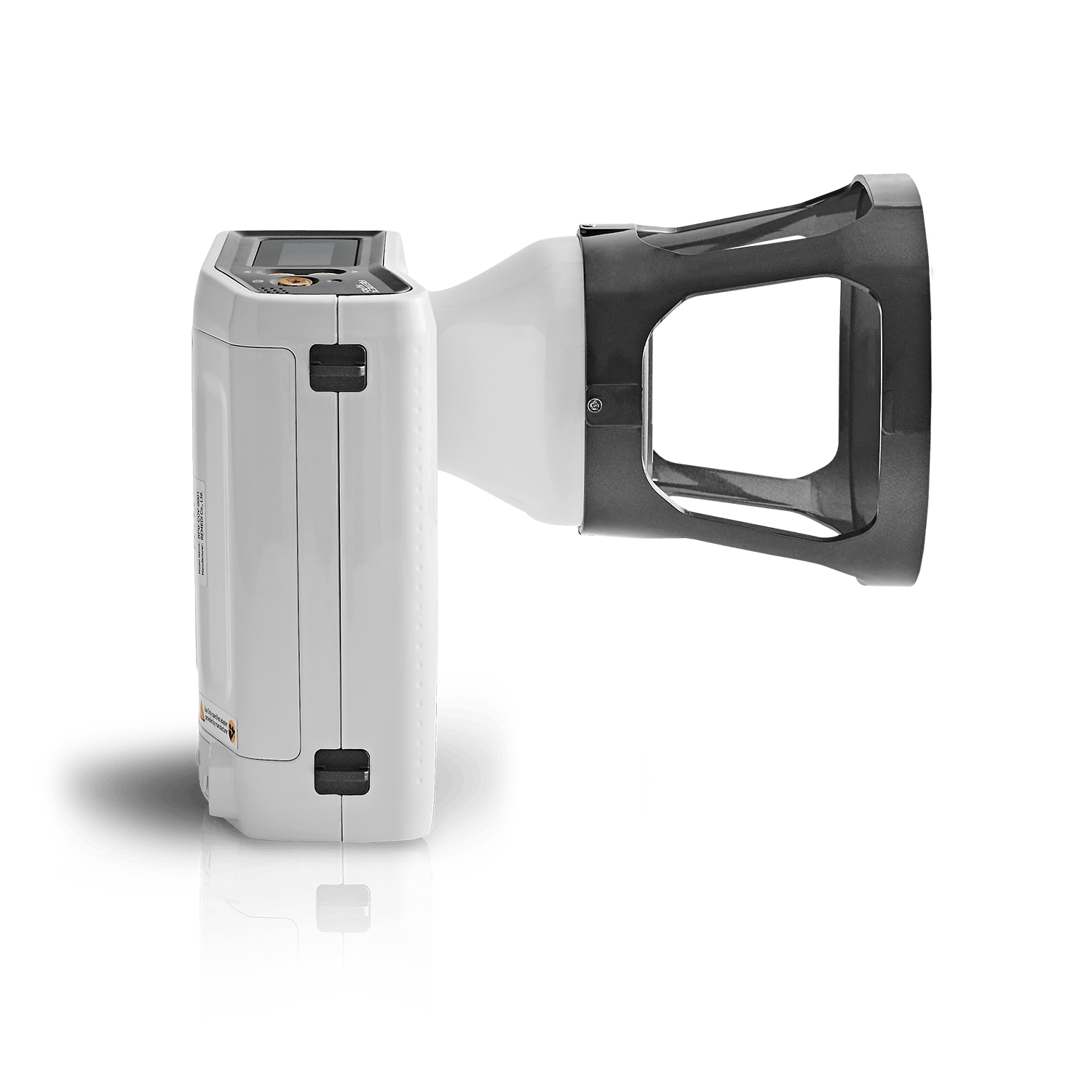

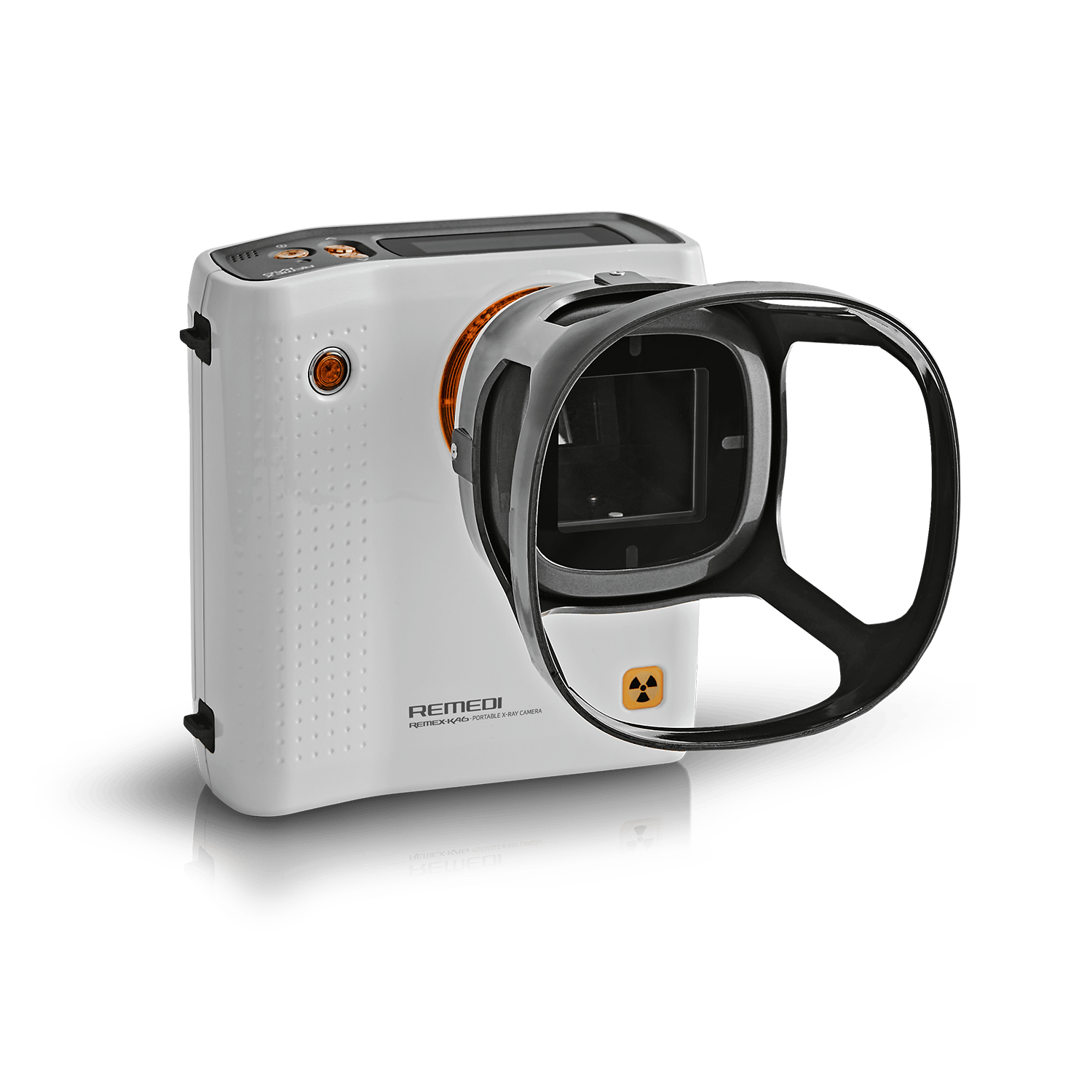

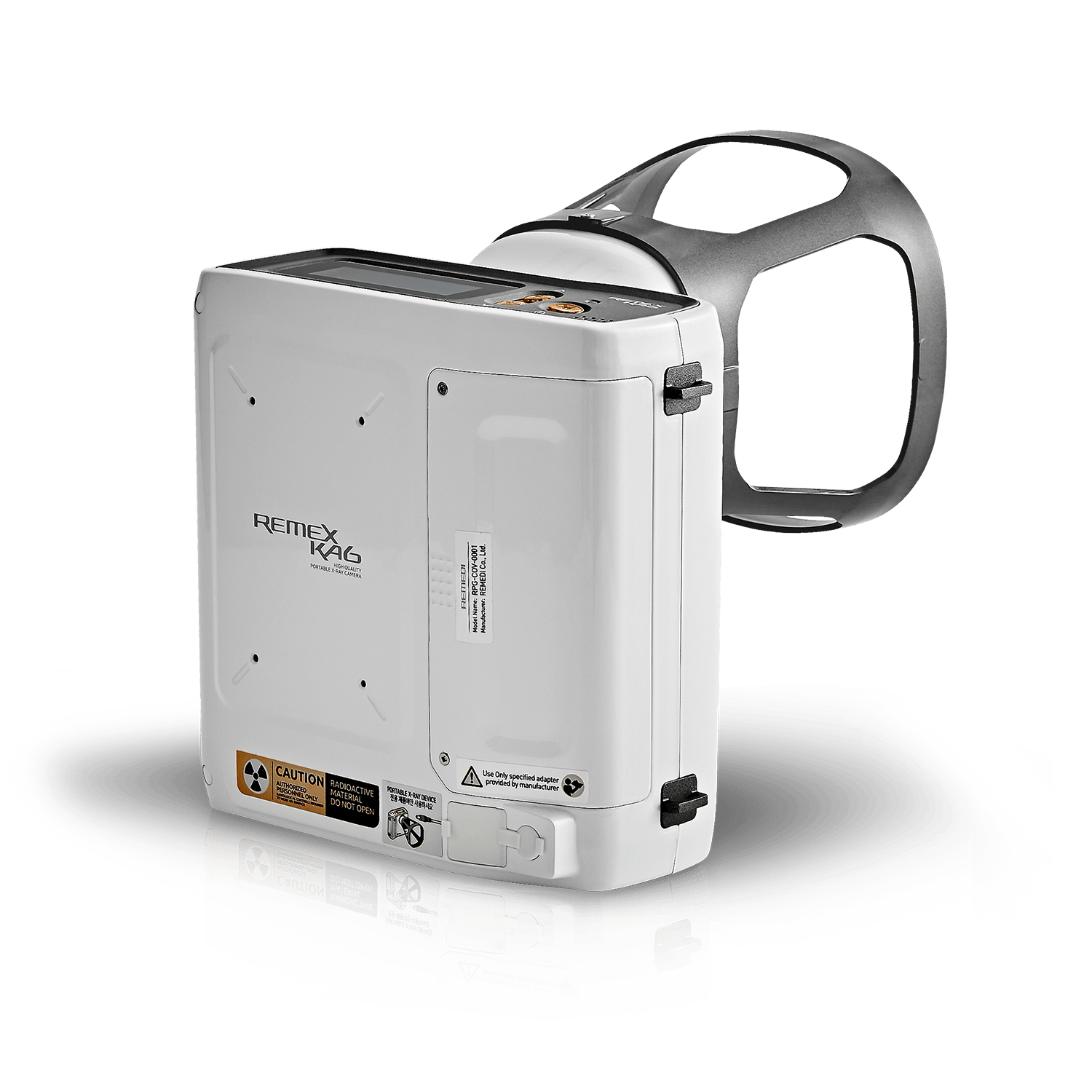

REMEX-KA6
Handheld X-ray Camera / Medical Imaging
This product is not intended for the U.S. market.
Superior Quality X-ray Image
- 70kV : Improved image penetration → Improved bone identification
- 6mA : Reduces requires irradiation time → Reduces motion blurring
- 0.4mm Focal Spot → High resolution
Superior Image Quality with
Low Radiation Exposure
Expanded Clinical Coverage
Parts of human body including adult chest, pelvis, abdomen, hands, feet and head
Reducing radiation exposure
by shortening imaging time
Low dose product design and mechanism minimized radiation exposure for operators and patients
Image acquisition under 3 seconds
Advantage Technology
THREE REDUCTION TECHNOLOGIES
Low dose
Minimized radiation exposure and safer for users
Increase the efficiency of X-rays and reduce the amount of radiation generated during X-rays as much as possible
High Resolution
High quality of X-ray image
Exclusive technology for achieving High Quality Images
Advanced image processing provides higher diagnostic value
Light Weight
Small and light weight in various spaces without location constraints
Excellent portability
Easy to move and can be used without restrictions on location
Performance & Specifications
INNOVATIVE PRODUCT
Tube Voltage
40 ~ 70 kV (Variable)
Tube Current
2 ~ 6 mA (Variable)
Exposure Time Range
0.06 ~ 2.0 Sec
Focal Spot Size
0.4 mm
Nominal Electric Power
420 W (70kV, 6mA, 0.1s)
Size
165.3 x 176.0 x 255.6 mm
Weight
2.4 kg
Battery
DC 22.2v / 1800 mAh
